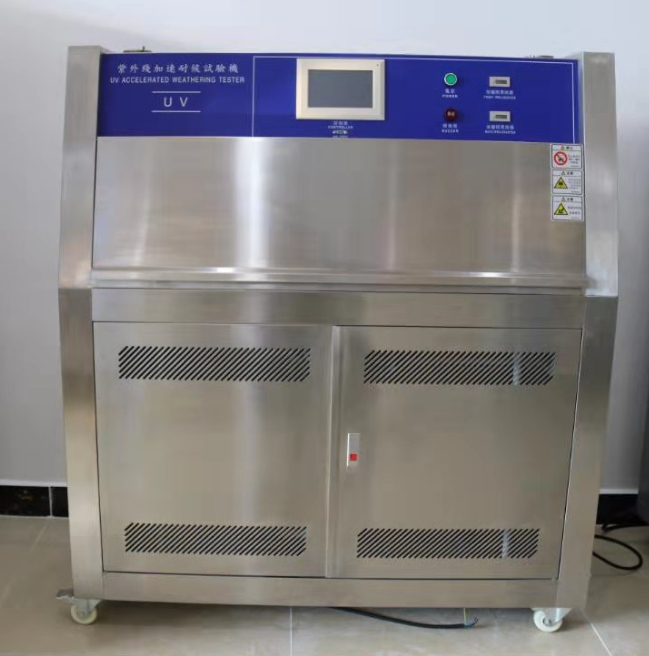

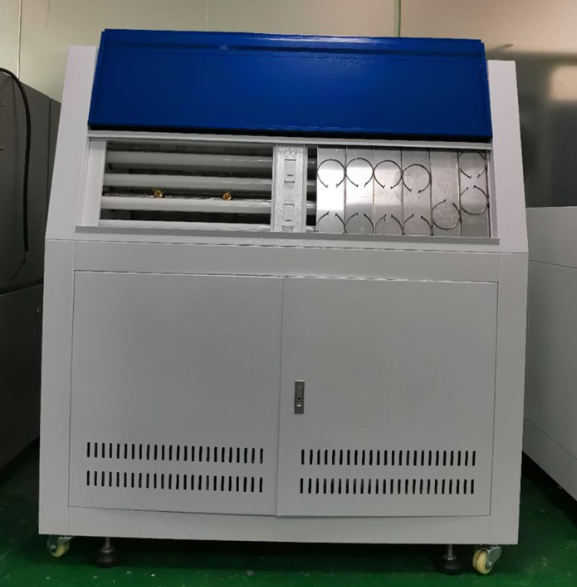

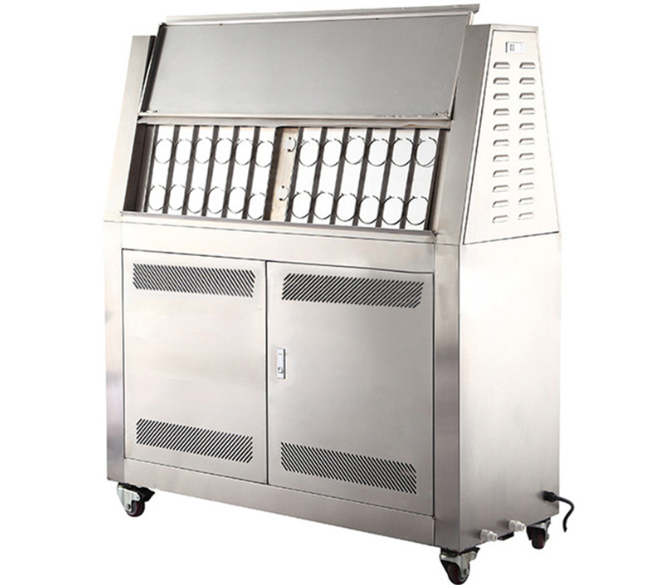

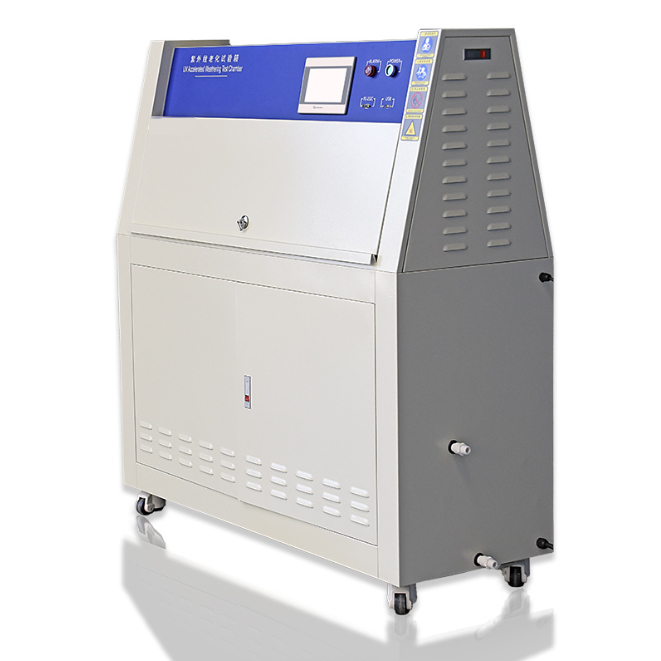

UV-A Mathine Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber
Description:
UV Aging Test Chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
user-friendly design:
Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.
Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.
Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.
Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
Touch screen controller (SIEMENS)
- 9.7-inch touch screen to displays a variety of data, menu-driven user interface, easy to understand, observe and operate.
- Irradiance, black panel temperature, rain cycles can be set and displayed visually.
- Touch screen can display all control parameters and automatic fault diagnosis information; with lamp attenuation tips to ensure irradiance uniformity, stability and reliability.
- Built-in industry standard in controllers for different industry user to select, 10 segments program can be set.
- With data processing capabilities for test data and playback process provide a strong guarantee.
Features:
1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.
2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel
The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
product description:
Model |
B-ZW |
| Internal Dim(DxWxH) |
50x75 |
| External Dim(DxWxH) |
58x128x135 |
| power(kw) |
4KW/3.2kW |
| performance index |
Temperature range |
RT+10℃-70℃ |
| Humidity range |
≥95%R.H |
| Distance between tubes |
35mm |
| Distance between sample and tube |
50mm |
| ultraviolet wavelength |
290nm-400nm UV-A,UV-B,UV-C |
| Lamp wattage |
40W |
| safety protection |
Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory |
Our company:
Packing/Shipping:
FAQ
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept FCA, CIF, CFR, and so on
